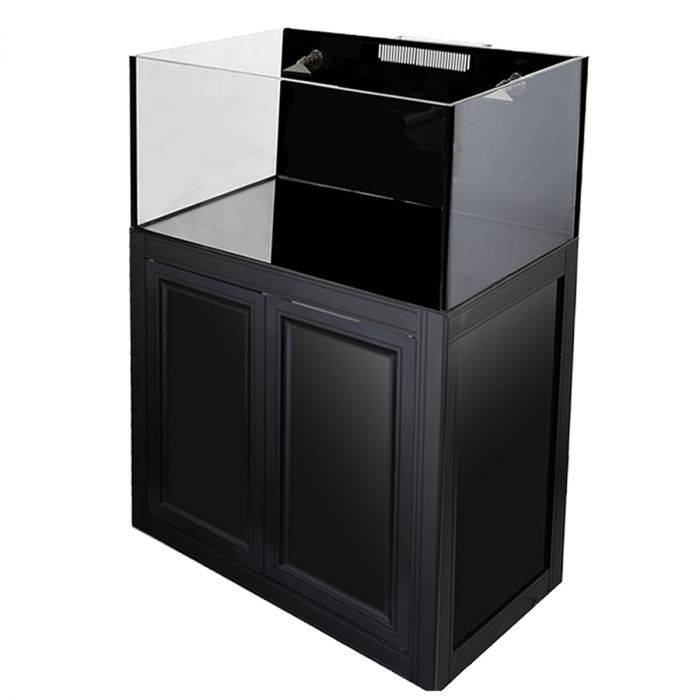

Innovative Marine NUVO EXT 75

Aquarium:

•


  Style of Aquarium: Panorama





•


  Water Volume: Approximately 75 gallons (283.91L)





•


  Length: 35.4" (899.16mm)





•


  Width: 23.6" (599.44mm)





•


  Height: 19.7" (500.38mm)





•


  Weight: 150 lbs (68.04 kg) Empty





•


  Glass Thickness: 1/2" (12mm)





•


  Glass Type: Non Tempered Low Iron





•


  Beveled and Flame Polished Edges





•


  Signature Black Silicone





•


  (2) Pre-drilled 3/4"holes (Return)





•


  (3) Pre-drilled 1"holes (Overflow)





•


  Reef Ready (Sump Not Included)





•


  Recommended return pump flow rate: 750-1500 GPH (2839.06 - 5678.12 LPH)




​

Filtration Type:​​

•


  External Overflow "Bean Animal"





•


  Overflow Box Length: 15.7” (398.78mm)





•


  Overflow Box Width: 3.5” (88.9mm)





•


  Overflow Box Height: 5.9” (149.86mm)





•


  Laser cut black acrylic overflow wall





•


  Centered external overflow





•


  Dual 3/4"returns




​

What's in the Box:​​

•


  (1) 75g NUVO EXT Aquarium





•


  (1) Pre installed Rubber Leveling Mat





•


  (1) 1" Slip x Slip Bulkhead (Overflow)





•


  (1) 1" Slip x Slip Bulkhead w/ 1" Diameter E-Drain Pipe (Overflow)





•


  (1) 1" Slip x Slip Bulkhead w/ 1" Diameter secondary E-Drain Pipe (Overflow)





•


  (2) 3/4" Bulkheads with LOC-LINE and Flare Nozzles (Return)





•


  User Manual





•


  Warranty Card




​

Product Compatibility:​​

•


  75g APS Aquarium Stand





•


  18W ChaetoMax Refugium LED





•


  Wavelink AIO Powerhead





•


  10W AuqaShield UV Sterilizer Universal





•


  MiniMax Pro Media Reactor Sump





•


  15 Gallon Reservoir Pro Kit




Shipping Weight: 196 lbs (88.90 kg)

UPC/EAN: 6940005106854

​

SKU: 0708-E
