Description

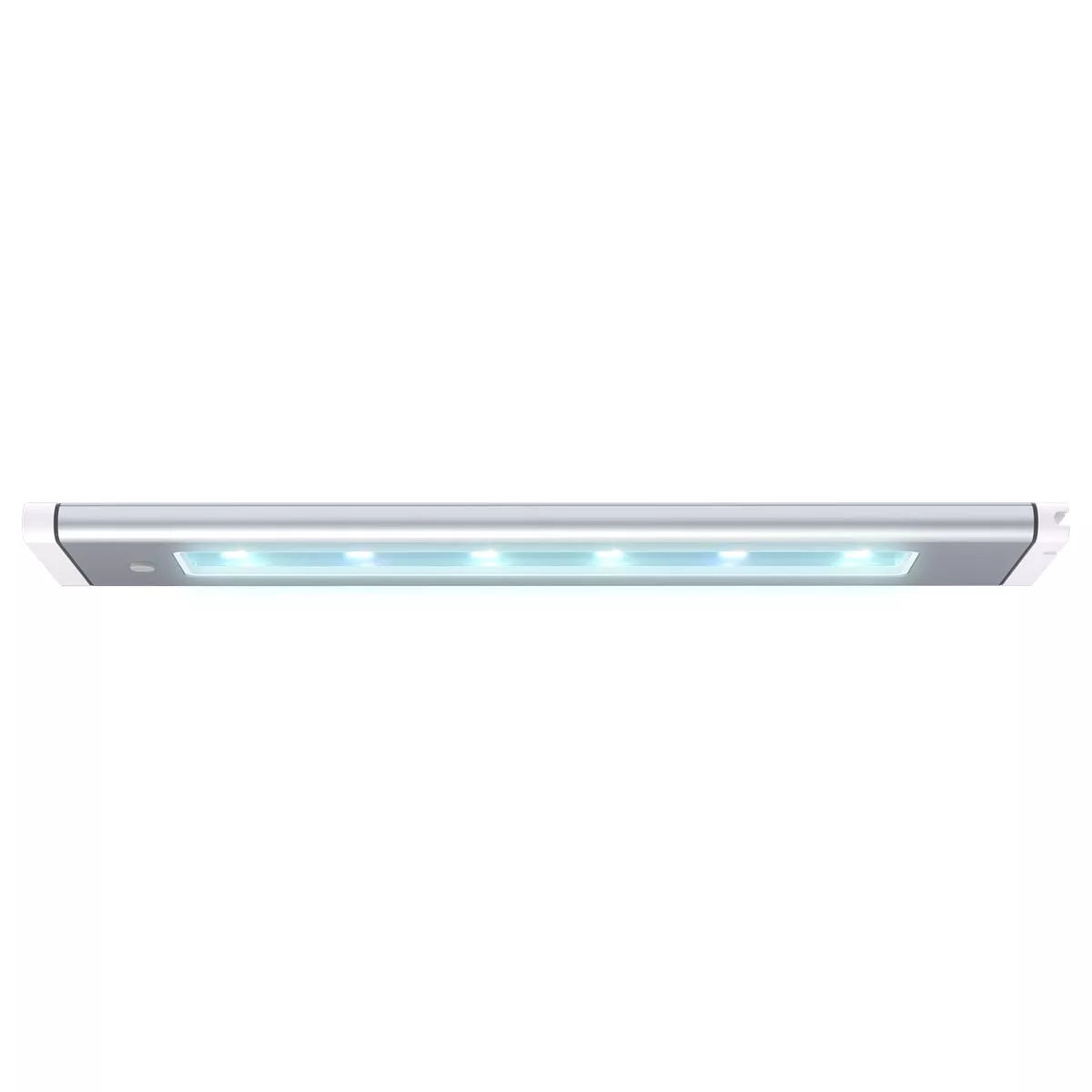

AquaIllumination Blade Freshwater
Freshwater Spectrum
The Blade Freshwater is capable of producing a large number of spectral combinations to fit your tank’s exacting needs.
LEDs (per cluster)
The AI Blade™ Glow utilizes the latest LED technology from leading manufacturers, arranged to provide the best performance.
- 16 – Cool White
- 4 – Warm White
- 2 – Blue
- 2 – Red
EdgeField™ Optics
Optics are one of the most important components of an advanced lighting system. Edgefield™ technology incorporated in the Blade delivers even PAR, smooth color mixing and exceptional spread.
Edgefield optics, designed exclusively for the Blade, provide an incredible, 95 degree spread while achieving unmatched light mixing along the length of the blade. The specular exit surface presents a crisp and natural shimmer in your aquarium.
Tank Rest Included
For Blades sized up to 39.1 inches the Low Profile Tank Rest is included. The tank rest extends up to 4.5 inches on either side of the blade (for a total of 9 inches)
M8 Mounting Thread
Simple Built-in Control
All AI devices include smart control standard. Use the myAI® app on any iOS or Android device to easily set up or program your AI equipment.
Carefully planned LED geometry coupled with Edgefield lens technology delivers amazing light efficiency. The Blade provides extremely even output over an impressive coverage area making for an easily usable light source that is both effective and attractive.
Silent Running
The Blade incorporates a highly efficient heat sink design. Passive cooling means no fan and no air movement or fan noise. This makes the Blade ideal for lighting aquariums in living spaces where less noise is a big plus.
Water Resistant
Blade is not only versatile but built to last in the harsh-environment of marine aquariums. Blade meets IP66 standards which indicate the highest protection against particles and a high level of protection against water.
| Dimensions | |
|---|---|
| Length |
12.1in. (30.7cm) |
| Width |
2.8in. (7cm) |
| Height |
0.7in. (1.6cm) |
| Power Specifications | |
|---|---|
| Power Consumption |
20W-140W at full power (model dependent) |
| Universal Input Range | 100 to 240VAC / 50-60Hz |
| Cable Length |
9.8ft. (3m) |
| PSU Regulatory Compliance | UL, CE & RoHS |
| What’s in the Box |
|---|
| AI Blade® Freshwater |
| Power Adapter |
| Blade Tank Rest Mounting Solution |
